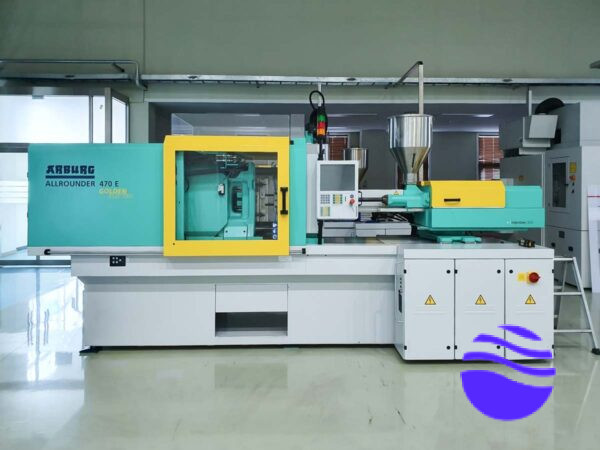

ARBURG 470E-1000-290, year 2017 – 100t all-electric injection molding machine

Original price was: £20,000.00.Current price is: £11,000.00.

ARBURG 470 E GOLDEN ELECTRIC 100 to 249t Injection moulding machines

Category:

Description

Only 80 working hours for testing. Never used in production.
Clamping force 1.000 kN
Core pulls
Daylight between platens max 600 / 850 mm
Dimensions (long x wide x high) 4.255 x 1.645 x 2.140 mm
Distance between tie-bars h 470 mm
Distance between tie-bars v 470 mm
Ejector force 150 kN
Injection pressure 1.600 bar
Injection volume 144 cm³
Operating hours 80
Platen size h 637 mm
Platen size v 637 mm
Power: installed max 20 kW
Screw diameter 35 mm
Screw speed 33 rpm
Shot weight max 132 g
Weight 5.300 kg
